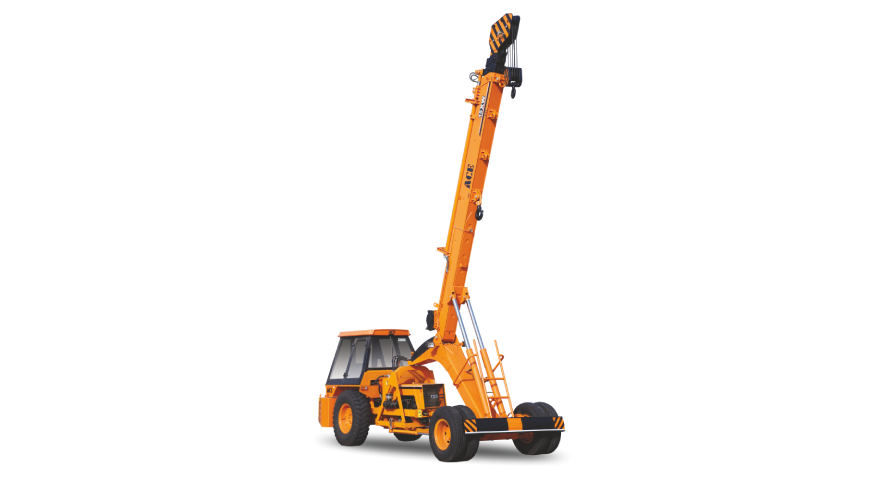

ACE 15XW

ACE 15XW

Unleash Maximum Power and Precision

Welcome to ACE 15XW – Power Redefined for Professionals

Meet the ACE 15XW, the latest breakthrough in high-performance technology. Designed to handle the most demanding tasks with ease and precision, ACE 15XW is engineered for those who need more—more power, more control, and more reliability. Whether you’re a contractor, technician, or DIY expert, ACE 15XW takes your performance to the next level.

Product Specification
Capacity (Free on Wheels) 15 Tonnes
Engine Simpson's S433(F) F1 (CEV BS-III), 4 cylinder, water-cooled diesel engine
Rated Power 48 BHP (36kW) at 2200 RPM
Transmission Heavy-duty sliding mesh with 6 forward and 2 reverse speeds, high/low range selector
Clutch Heavy-duty, single, dry friction, cerametallic clutch plate with diaphragm-type pressure plate
Top Speed 28 KMPH without load
Hydraulic System Gear/Intra vane type main pump, four spools control valve, suction line with 100 mesh size strainer
Power Steering Two double-acting lift cylinders, two double-acting steering cylinders, one extension cylinder
Brakes Pneumatically assisted hydraulic brakes, front and rear brakes actuated through single pedal
Telescopic Boom 3-part boom with hydraulically operated extensions (11.25 meters height)
Boom Luffing Time 20 ± 3 Seconds
Hoist Winch driven by hydraulic motor with 4 falls, 13 mm rope
Hoist Speed 50 Mtrs./Min. (Line speed)
Fluid Capacities Engine: 8.00 Ltrs; Fuel Tank: 45.00 Ltrs; Hydraulic Tank: 125.00 Ltrs; Transmission: 48.00 Ltrs
Electrical System 12V negative earth with 35 Amp alternator and 75 Amp hr battery
Tyres (Front) 11.00 x 20 - 16 PR (4 Nos.)
Tyres (Rear) 13.00 x 24 - 12 PR (2 Nos.)
Safety Audio overload indication, hose failure protection, audio over hoisting indication, safety brakes on hoist, cylinder guards
Standard Equipment ROPS fully enclosed wide view cabin, front and rear work lights, reflectors, rearview mirror, tool kit
Optional Equipment Fly jib, steering wheel, spark arrester, air brakes, 4 part boom options, over hoisting hydraulic cutoff, LMI, bigger size front windscreen
Operating Weight 13,350 kgs
