Unrivaled Power. Unmatched Precision.

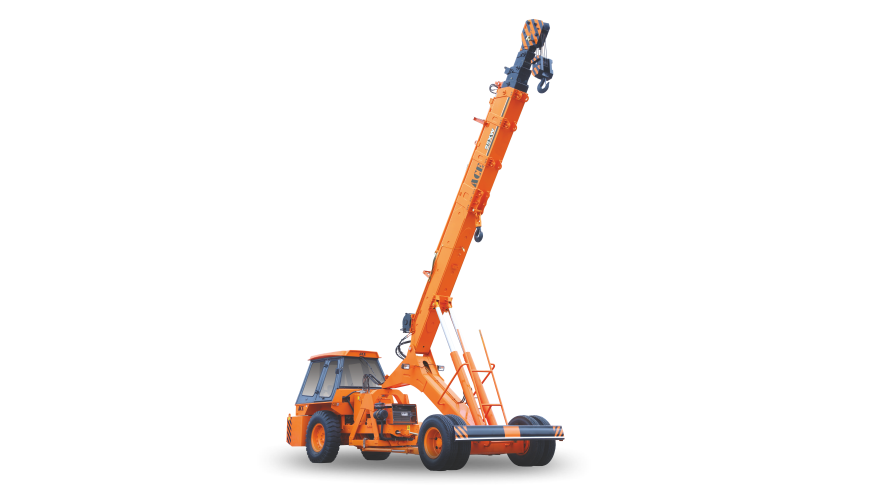

Welcome to ACE 25XW – The Apex of Performance and Reliability
Introducing the ACE 25XW, a groundbreaking tool designed to deliver the ultimate in power, precision, and durability. Built for professionals who demand peak performance, the ACE 25XW is the ideal solution for tackling even the toughest tasks in construction, engineering, and industrial environments. Its cutting-edge technology and rugged design make it the go-to choice for those who need the best.
| Lifting Capacity | 25 Tonnes (Free on wheels) |
| Engine | Simpson (CEV BSIV) 4-cylinder, water-cooled diesel engine Model SIW-436-F23 |
| Rated Power | 74 HP (54 KW) at 2200 RPM |
| Transmission | Heavy-duty, sliding mesh with 6 forward and 2 reverse speeds |
| Clutch | Heavy-duty, single, dry friction cerametallic clutch plate |
| Top Speed | 28 KMPH Without load |
| Hydraulic System | Gear/Intra Vane type Main Pump, four spools control valve with built-in relief valve (heavy duty), suction line strainer with 100 mesh size |
| Brakes | Air operated S Cam dual brakes on front wheels, air operated disc brakes on rear wheels |
| Telescopic Boom | Three-part boom with hydraulically operated extensions |
| Telescoping Time | 18 Sec |
| Boom Luffing Range | -3° to +73° |
| Boom Luffing Time | 20 Sec |
| Steering | Lever operated with 55° articulation on either side and 6.5 Mtrs turning radius |
| Hoist | Winch driven by hydraulic motor, 6 falls of 13mm dia. rope |
| Hoist Speed | 35 Mtrs/min |
| Electrical System | 12V, Negative earth with 35 Amp alternator and 100 Amp hr. battery |
| Fluid Capacities | Engine: 9.5 Ltrs, Fuel Tank: 76.00 Ltrs, Hydraulic Tank: 125.00 Ltrs, Transmission: 48.00 Ltrs |
| Tyres | Front: 12.00 x 24 – 20 PR (4 Nos), Rear: 14.00 x 25 – 20 PR (2 Nos) |
| Safety | Audio overload indication, Hose failure protection, Audio over hoisting indication, Safety brakes on hoist, Cylinder guards |
| Standard Equipment | ROPS fully enclosed wide view cabin, front tyre protector, front and rear work lights, tool kit |
| Optional Equipment | Fly jib (2.75 Mtrs, 1.25 Tonnes), 5-part boom (23.1 Mtrs height), steering wheel, fire extinguisher, spark arrestor |
| Operating Weight | 17420 Kgs |
