Unmatched Durability. Unrivaled Performance.

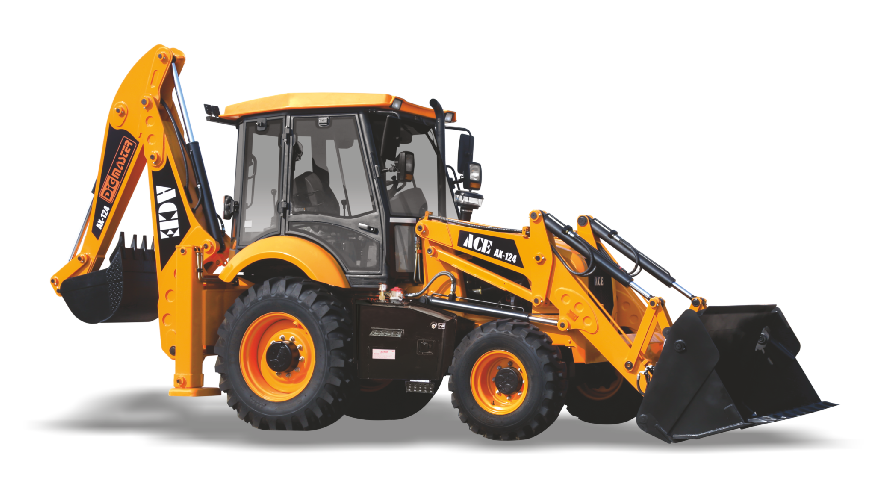

Welcome to ACE AX - 124 Rugged Power – Your Ultimate Tool for Tough Environments
Introducing the ACE AX - 124 Rugged Power, a powerful and reliable tool designed to withstand the most demanding conditions. Engineered for professionals who require both strength and precision, the ACE AX - 124 combines cutting-edge technology with a robust design, making it the go-to choice for heavy-duty tasks across various industries.
| Engine | Kirloskar 4R1190NA1 (BS-IV) 4 cylinder, inline water cooled Naturally Aspirated diesel engine delivering 74 HP @ 2200 rpm |
| Max Torque | 300 Nm @ 1300 rpm |
| Transmission | Synchro shuttle transmission with torque converter & synchronised gearbox. Single switch forward-reverse function for better loading application with 4 forward & 4 reverse speeds. Max speed 40 kmph |
| Axle | "Front: Drive (In case of 4 WD) & Steer Axle, centrally pivoted Rear: Rigid axle with CARRARO planetary drive" |
| Steering | Hydrostatic steering for reliability and better control |
| Brakes | Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control. Mechanically actuated disc brakes for parking |
| Cabin | ROPS fully enclosed wide view cabin with easy entry and exit from the cabin |
| Hydraulic System | Main Pump flow: 118 lpm, Relief Pressure: 210 bar |
| Electrical System | 12V Battery with negative earth and suitable alternator |
| Operating Weight | "8040 kgs (2 WD) 8190 kgs (4 WD)" |
| Turning Radius | "Without Brake: 4.4 metres With Brake: 3.5 metres" |
| Refill Capacities | "Hydraulic Tank: 80 litres Fuel Tank: 150 litres Engine Oil: 11.5 litres Transmission & Torque Converter: 17 litres Rear Axle (Planetary gear box): 3 litres Differential Housing: 14.5 litres" |
| Tyres | "Front 2WD: 9.00 - 16 - 16 PR 4WD: 12.5 / 80 - 18 -12 PR Rear - Standard: 16.90 - 28 - 12 PR" |
| Optional Equipment | "6-in-1 loader bucket Rock Breaker Excavator bucket : 0.09 cu.m / 0.12 cu.m. & 0.30 cu.m. Heavy Duty Tyres (14.00 x 25) A.C. Cabin Telematics |
| Variant Model | "Mahindra MCVNC35TI074CE4 (2WD) (BS-IV), 4 cylinder, turbo charged, water cooled diesel engine delivering 74 HP @2200 rpm, 345 Nm @1300-1500 rpm Mahindra MCVNC35TI095CE4 (4WD) (BS-IV), 4 cylinder, turbo charged, water cooled diesel engine delivering 95 HP @ 2200 rpm, 401 Nm @1200 rpm" |
